Understanding the Agent Swarm Pattern

A deep dive into decentralized AI coordination and autonomous system design

As artificial intelligence moves from single-model responses toward autonomous action, engineering complex systems is critical. While early autonomous systems relied on strict hierarchies, a new philosophy is emerging: The Agent Swarm.

Sci-fi futuristic illustration of AI agent swarm coordinating around a planetary backdrop with halo effect

Introduction: The Shift in AI Architecture

<!-- AdSense square fragment placeholder -->

The Swarm pattern prioritizes decentralized, peer-to-peer coordination. Rather than waiting for orders, agents react dynamically to a shared environment. This philosophy, exemplified by frameworks like OpenClaw (formerly Clawdbot/Moltbot) and recent releases from OpenAI, promises a resilient, highly adaptive approach to automation.

sequenceDiagram
    participant User
    participant Swarm as Agent Swarm
    participant Memory as Shared Memory

    User->>Swarm: Request task
    Swarm->>Memory: Write task

    loop Agent Coordination Loop
        Memory-->>Swarm: State change
        Swarm->>Memory: Agent reads task
        Swarm->>Memory: Agent publishes result
    end

    Swarm->User: Deliver solution

    Note over Swarm,Memory: Decentralized coordination
via shared state
Decentralized workflow using shared memory (Blackboard pattern)

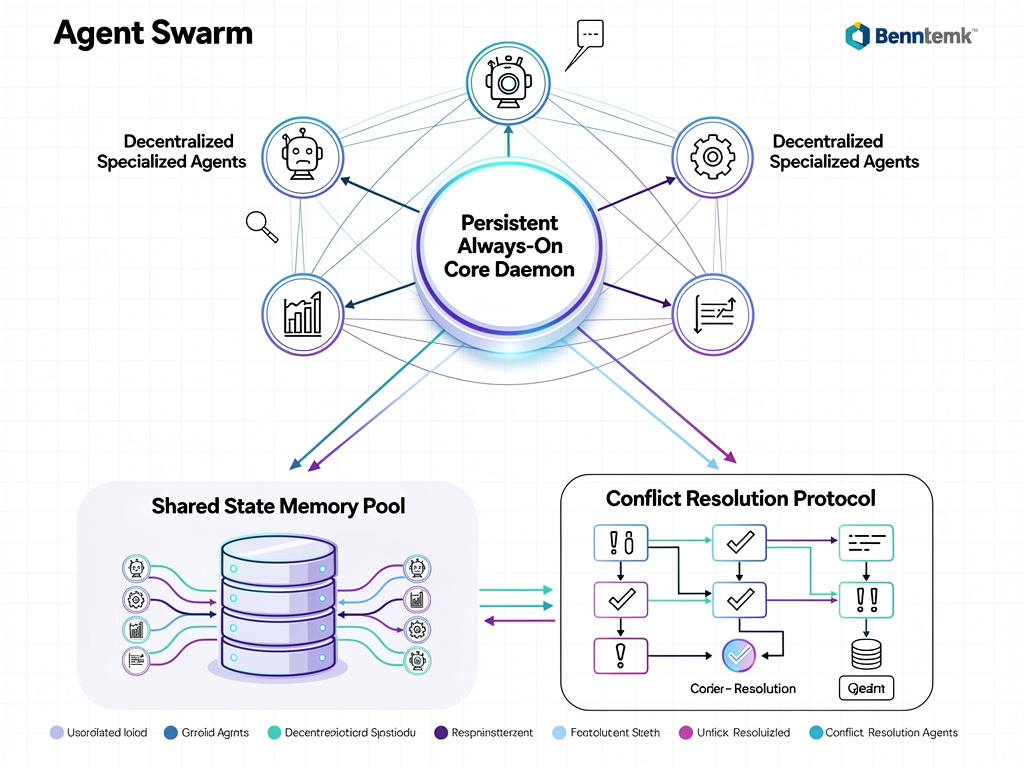

Core Components of a Swarm

A true agent swarm is defined by how its independent pieces interact, rather than by a rigid organizational chart. We can break down this architecture into four defining elements:

Generated image div_002

1. Persistent "Always-On" Core

Unlike traditional scripts that execute and terminate, a swarm agent functions as a background daemon on a host machine. It is perpetually active, monitoring inputs from connected platforms (e.g., WhatsApp, Telegram) or integrated APIs. This "always-on" persistence is fundamental for a system designed to react autonomously to events 24/7.

2. Decentralized Agents

Swarms are composed of specialized, largely independent units. To solve a complex problem, the system doesn't activate a single powerful model; instead, it spins up a diverse team: a "Coder Agent," a "Reviewer Agent," and perhaps a "Research Agent." Each focuses solely on its niche capability.

3. Coordination via Shared State

This is the engine of the swarm. Agents coordinate not through direct, brittle messaging ("Agent A tells Agent B to do X"), but by reading and writing to a shared, enduring, structured memory (sequences or vector memory). Using a model often called the 'Blackboard' pattern, agents "see" state changes in the environment and self-select tasks they are qualified to handle.

Blackboard Pattern: A software design pattern where multiple specialized subsystems work together on a common task, communicating through a shared "blackboard" workspace. Each subsystem can read from and write to the blackboard, allowing for flexible, emergent coordination.

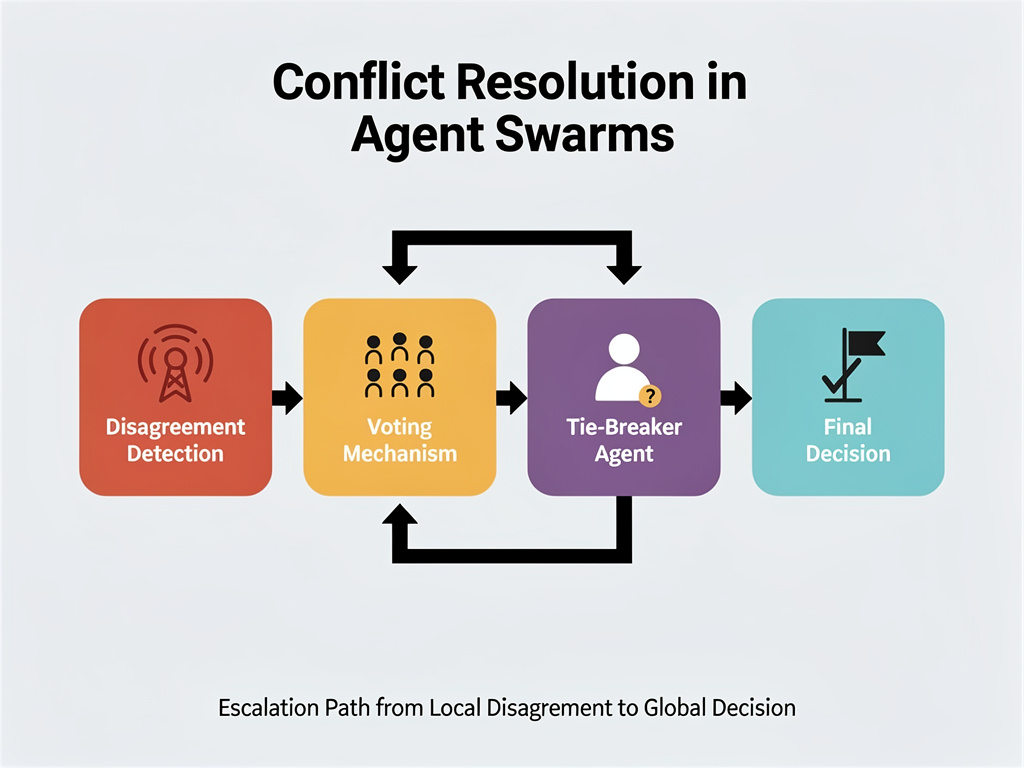

4. Conflict Resolution Protocol

A truly decentralized system requires mechanisms for when agents disagree (e.g., the Coder insists on a solution the Reviewer rejects). Swarms must integrate protocol-based resolution, such as consensus-based voting, or, as a last resort, escalation to a simple tie-breaker agent, ensuring the system does not enter a loop.

<!-- AdSense horizontal fragment placeholder -->
Generated image div_003

Reality Check: Capabilities vs. Limitations

While the vision of the swarm is powerful, contemporary engineering requires distinguishing emerging capabilities from aspirational goals.

What is Emerging (Accurate)

The movement toward event-driven choreography is real. Frameworks are successfully using shared state to manage complex, multi-step workflows without a central brain micromanaging every interaction. The resilience of these systems—where one agent can fail and another automatically takes over—is a key advantage.

What is Often Aspirational (Overstated)

The promise of full autonomy, particularly in scenarios like a "one-person dev team pulling off dozens of commits a day with minimal human supervision," is still largely idealized. In practice, completely unguided swarms tend to hallucinate cycles or drift in context. Effective systems still require a high-level router (a "concierge" agent) or critical human-in-the-loop validation checkpoints before major actions are committed.

Warning: Unsupervised agent swarms can enter infinite loops, consume excessive API resources, and produce unpredictable results. Always implement budget guardrails and human oversight checkpoints.

Critical Missing Components

For a swarm to operate safely and effectively, engineers must integrate two pillars not always highlighted in conceptual descriptions:

Recent Criticisms and Failure Modes

While the "agent swarm" pattern has generated massive hype, recent research has increasingly criticized poorly constrained implementations. When evaluated strictly, naive swarms often suffer from context bloat, performance degradation, and actual drops in accuracy compared to well-configured single models. Key failure modes identified in recent research include:

The Takeaway: Throwing a swarm of agents at a problem and having them share a context isn't a magic bullet—it often multiplies the surface area for errors, hallucinations, and distractions. Multi-agent systems only reliably outperform single models when there are highly structured, rigid "contracts" between agents (like a hierarchical pipeline where context is strictly filtered) rather than a free-for-all shared chat.

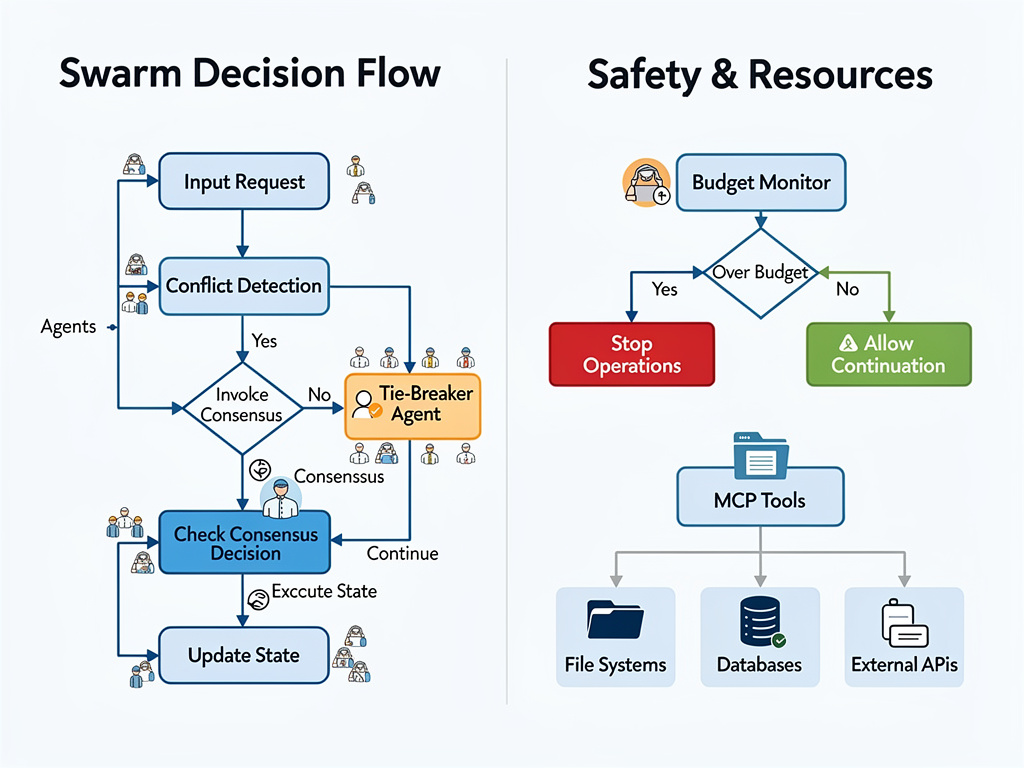

Agent swarm decision workflow with safety guardrails flowchart

Implementation Patterns

Here are common implementation strategies for agent swarms:

Shared Memory Architecture

class SharedMemory:
    def __init__(self):
        self.tasks = []
        self.solutions = []
        self.feedback = []

    def add_task(self, task_description):
        self.tasks.append({
            'id': len(self.tasks) + 1,
            'description': task_description,
            'status': 'pending',
            'assigned_to': None
        })

    def claim_task(self, agent_id, task_id):
        for task in self.tasks:
            if task['id'] == task_id and task['status'] == 'pending':
                task['status'] = 'in_progress'
                task['assigned_to'] = agent_id
                return True
        return False

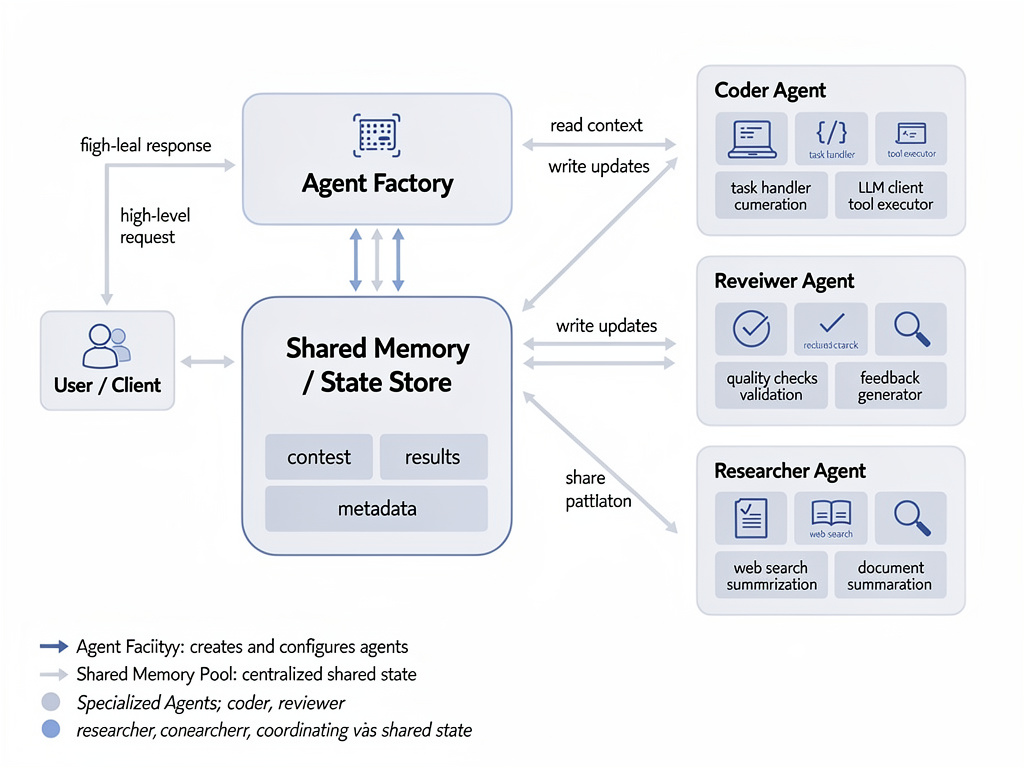

Agent Factory Pattern

class AgentFactory:
    def __init__(self, memory):
        self.memory = memory
        self.agents = {}

    def create_agent(self, agent_type, agent_id):
        if agent_type == 'coder':
            agent = CoderAgent(agent_id, self.memory)
        elif agent_type == 'reviewer':
            agent = ReviewerAgent(agent_id, self.memory)
        elif agent_type == 'research':
            agent = ResearchAgent(agent_id, self.memory)
        else:
            raise ValueError(f"Unknown agent type: {agent_type}")

        self.agents[agent_id] = agent
        return agent

    def coordinate_task(self, task_description):
        # Write task to shared memory
        self.memory.add_task(task_description)

        # Let agents self-select
        for agent in self.agents.values():
            agent.monitor_memory()
Generated image div_004

Best Practices for Swarm Development

  1. Start with Clear Boundaries: Define explicit roles and responsibilities for each agent type.
  2. Implement Cost Controls: Set hard limits on API usage and compute resources.
  3. Design for Failure: Assume agents will fail and build recovery mechanisms.
  4. Use Structured Communication: Implement shared state with clear schemas for task representation.
  5. Maintain Observability: Log all agent decisions and state changes for debugging.
  6. Incorporate Human Oversight: Design checkpoints where human validation is required for critical decisions.

Conclusion

The agent swarm pattern represents a significant evolution in AI system design, moving from centralized control to decentralized coordination. While the technology generated massive early enthusiasm for building resilient, adaptive systems, recent research provides a necessary reality check. We now know that unconstrained swarms often struggle with context bloat, behavioral drift, and the degradation of strong models by weaker peers.

Successful implementation requires moving beyond the "free-for-all" chat paradigm. It demands careful attention to structured, isolated communication protocols, robust conflict resolution, and strict financial guardrails. As the industry matures, we are finding that the most effective AI architectures often combine the raw power of strong single-agent models (like advanced RAG pipelines) with highly structured, rigidly routed multi-agent interactions.
